Smart 4K Dual-Lens Wi-Fi 6 Camera with 180° Panoramic View
4K 8MP Ultra HD Resolution for Clarity
180° Dual-Lens Seamless Panoramic View
Smart Person, Vehicle, and Animal Detection
Full-Color Night Vision with Built-In Spotlights
Dual-Band WiFi 6 for Fast Connection
Two-Way Audio with Built-In Security Siren
RM829.00–RM1,579.00Price range: RM829.00 through RM1,579.00

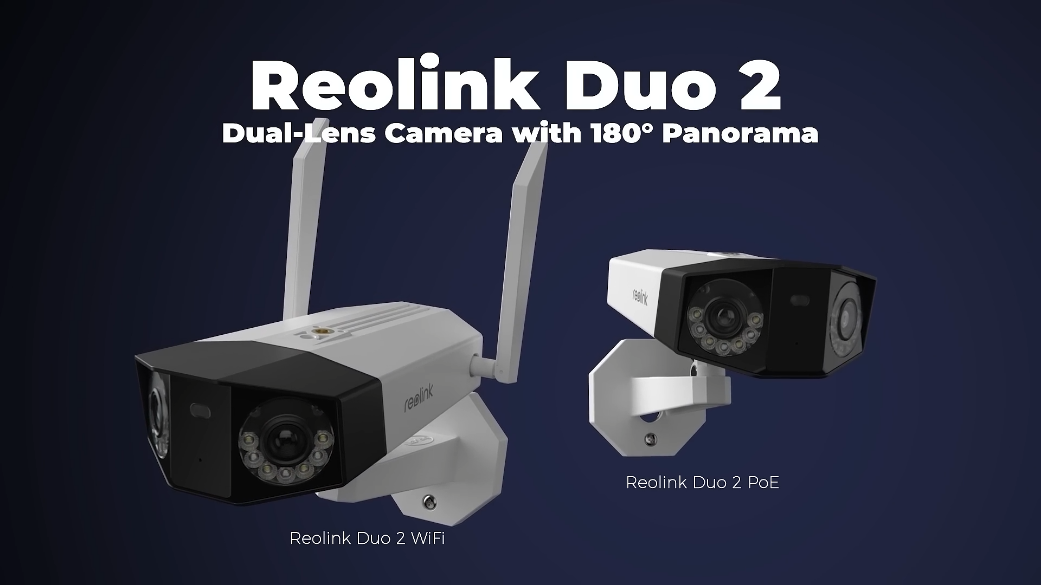

Reolink Duo 2 WiFi
Duo 2 WiFi Video
6 Videos
Others Video
Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.
What makes the Reolink Duo 2 WiFi unique compared to standard security cameras?
A: The Reolink Duo 2 WiFi combines two physical camera lenses into a single housing to create an ultra-wide 180-degree panoramic view. Using advanced internal stitching algorithms, the camera merges both lens feeds into one continuous, gap-free 4K video stream without image distortion or overlapping seam lines.
What is the video resolution and aspect ratio of the Reolink Duo 2 WiFi?
A: The camera captures video in 4K Super HD resolution at 4608 x 1728 pixels (8 Megapixels total) at 20 frames per second using H.265 video compression. It utilizes an ultra-wide 32:9 panoramic aspect ratio to cover broad open spaces in a single frame.
What field of view coverage does this camera provide?
A: The camera provides a 180-degree horizontal field of view and a 60-degree vertical field of view, replacing the need for multiple separate cameras to monitor expansive areas like front yards, wide driveways, parking spaces, or store fronts.
What items are included in the product box?
A: The package includes:
Reolink Duo 2 WiFi
2x External WiFi Antennas
DC 12V/2A Power Adapter
4.5 Meter Power Extension Cable
1 Meter Ethernet Cable
Mounting Bracket (Supports Wall and Ceiling Mounting)
Mounting Hole Template
Pack of Screws and Wall Anchors
Screwdriver
Waterproof Lid for Ethernet connector
Quick Start Guide
24-Hour Video Surveillance Sticker
Is the Reolink Duo 2 WiFi weatherproof for outdoor installation?
A: Yes, the camera is IP67 certified weatherproof. Its heavy-duty housing protects internal electronics against heavy rain, snow, dust, and direct sunlight. It operates in temperatures ranging from -10°C to +55°C (14°F to 131°F).
Power Supply & Dual-Band WiFi Setup
How is the Reolink Duo 2 WiFi powered?
A: The camera is powered via an included DC 12V 2A external power adapter. A 4.5-meter (14.7 feet) power extension cable is included in the box to help reach distant indoor or covered electrical outlets. Note that this model is not a PoE (Power over Ethernet) camera.
What WiFi frequencies and wireless security standards are supported?
A: The Duo 2 WiFi supports dual-band WiFi (2.4GHz and 5GHz) operating under IEEE 802.11 a/b/g/n/ac/ax wireless standards. It supports modern, robust encryption protocols including WPA-PSK, WPA2-PSK, and WPA3-PSK for enhanced network security.
Does the Reolink Duo 2 WiFi have an Ethernet port, and why is a 1m network cable included?
A: Yes, the camera features a built-in 10M/100Mbps RJ45 Ethernet port. The included 1m network cable is provided primarily for quick initial setup with your router, or for users who prefer to operate the camera via a permanent hardwired network connection.

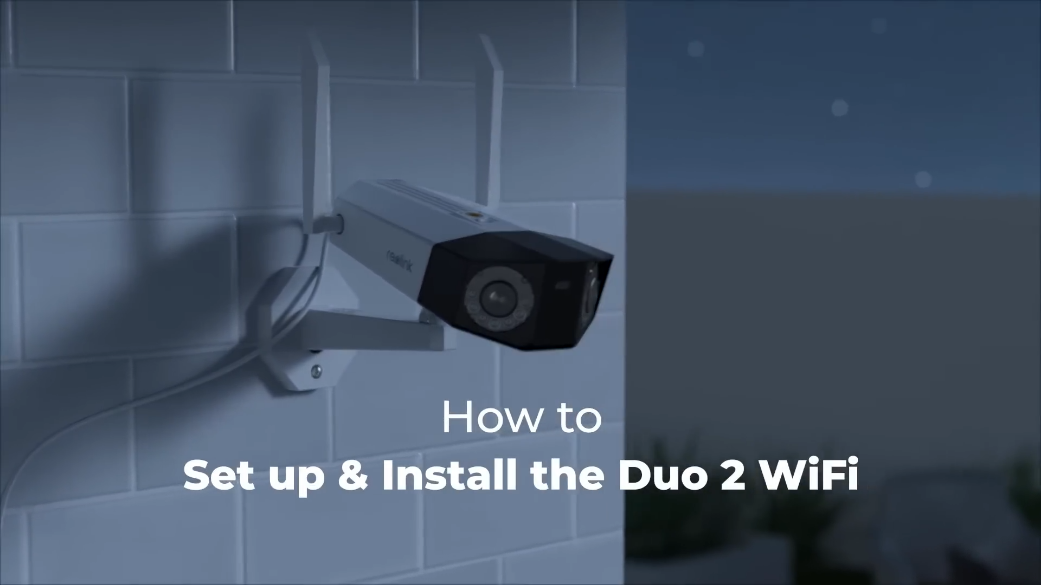

How do I initially set up the Duo 2 WiFi on my wireless network?
A: To perform the initial setup:
Connect the camera to the DC 12V power adapter.
Plug the camera into your router's LAN port using the included Ethernet cable.
Open the Reolink App on a smartphone connected to the same network.
Scan the camera's QR code or auto-detect device, set up an admin password, select your preferred 2.4GHz or 5GHz WiFi network, and enter the wireless password.
Save the configuration and disconnect the Ethernet cable to switch to full WiFi operation.
What should I do if the camera fails to connect to my WiFi network?
A: Troubleshooting steps:
Ensure the external WiFi antennas are screwed tightly onto the rear antenna ports.
Verify that your WiFi password was entered accurately in the Reolink App.
Bring the camera closer to your router during initial setup to confirm signal strength.
Check that your router's SSID name is within 31 characters and password within 64 characters using standard ASCII characters.
Ensure your router firewall is not blocking local P2P or UDP communication.
Smart AI Detection, Night Vision & Audio
What smart AI detection features are built into the Duo 2 WiFi?
A: The camera incorporates onboard AI algorithms to detect and classify People, Vehicles, and Pets or Animals (Specifically cats and dogs), alongside standard motion detection. Filtering alerts by target type significantly reduces false motion triggers caused by wind, swaying trees, or insects.
How does Night Vision work on the camera?
A: The camera features two distinct night vision modes:
Black & White Infrared Night Vision: Employs 6 infrared LEDs (850nm) with auto-switching IR-cut filters to see up to 30 meters (100 feet) in complete darkness.
Color Night Vision: Employs 8 built-in 6500K spotlights (5W total) to illuminate the surroundings and record full-color video in low-light environments.
Does the Reolink Duo 2 WiFi support Two-Way Audio?
A: Yes. The camera features a built-in noise-canceling microphone and a high-output speaker. You can listen in and talk directly to visitors, delivery drivers, or trespassers in real-time through the Reolink App or Desktop Client.
What is the Motion Track feature?
A: Motion Track automatically generates an overlay trace showing the movement path of an object (Person, vehicle, or pet) across the 180-degree panoramic field of view over time, allowing you to quickly review full event trajectory in a single frame or video clip.
Can I schedule or customize the spotlights and built-in siren?
A: Yes. You can configure the bright spotlights and loud security siren to trigger automatically upon person or vehicle or pet detection, set custom activation schedules, or manually toggle them on or off at any time using the app.
Mounting & Physical Installation
Can the Reolink Duo 2 WiFi be mounted on walls and ceilings?
A: Yes. You can configure the bright spotlights and loud security siren to trigger automatically upon person or vehicle or pet detection, set custom activation schedules, or manually toggle them on or off at any time using the app.
What is the recommended height and orientation for mounting?
A: Mount the camera approximately 2.5 to 3 meters (8 to 10 feet) above the ground, angled slightly downward toward the primary observation area. This height optimizes panoramic field-of-view coverage and PIR or AI detection accuracy.
How do I adjust the camera viewing angle after mounting?
A: Use the included screwdriver to loosen the adjustment screw located on the security bracket arm, tilt or swivel the camera body to your target direction, and tighten the screw securely to lock the camera in position.
How should the two WiFi antennas be positioned for optimal signal?
A: For the strongest wireless performance, orient both external antennas vertically pointing straight up or parallel to your router's antennas when wall-mounted, or pointing straight down when ceiling-mounted.
How do I seal the Ethernet port for outdoor use when operating on WiFi?
A: If you are using the camera on WiFi and leaving the Ethernet port unplugged outdoors, place the provided rubber O-ring and waterproof cap over the RJ45 port and twist it tightly shut to protect the port pins from water corrosion.
Storage Options, Recording & System Integration
What local and network video storage options are available?
A: The camera supports multiple flexible recording destinations:
microSD Card: Local onboard slot supporting cards up to 512GB.
Reolink NVR: Continuous 24/7 or motion recording on Reolink WiFi or PoE NVR hard drives.
FTP Server: Automated uploading of backup video clips to a local or remote FTP server.
Can the Reolink Duo 2 WiFi record continuously 24 hours a day?
A: Yes. Because the camera receives continuous power from a DC adapter, it fully supports 24/7 continuous video recording, scheduled recording, and motion-triggered event recording simultaneously.
Is the Duo 2 WiFi compatible with Reolink NVR systems?
A: Yes, it is compatible with Reolink NVRs (WiFi and PoE models) over your local network. For seamless 4K panoramic video rendering and AI playback support, ensure your NVR is updated to the latest official firmware version from Reolink.
Can I integrate this camera with third-party software like Blue Iris, Synology, or Home Assistant?
A: Yes. The Duo 2 WiFi supports open standard network protocols including ONVIF, RTSP, RTMP, HTTPS, HTTP, UPnP, SMTP, NTP, DHCP, and P2P, allowing integration with Synology Surveillance Station, QNAP, Blue Iris, Home Assistant, and Scrypted.
Is a paid monthly subscription required to use the camera?
A: No. All core functionality including 180-degree 4K live view, AI person or vehicle or pet detection, push notifications, two-way audio, and local video recording to a microSD card, works free of charge out of the box without any subscription.
App, Client, Smart Home & Troubleshooting
Which platforms and applications are supported for remote access?
A: You can view live streams and playback using:
Reolink App: Free download for iOS and Android mobile devices.
Reolink Client: Free desktop software for Windows PC and macOS.
Web Browsers: Edge, Chrome, Firefox, and Safari via local IP address access.
Does the Reolink Duo 2 WiFi integrate with smart home assistants?
A: Yes, the camera is compatible with Google Assistant. You can display its 180-degree live feed on smart displays like the Google Nest Hub using voice commands.
How many users can view the live video feed simultaneously?
A: The camera supports up to 20 registered user accounts (1 admin and 19 user accounts). It can handle up to 12 simultaneous video streams (2 main streams and 10 sub streams).
How do I perform a hard factory reset on the Reolink Duo 2 WiFi?
A: Locate the rubber cover on the bottom panel of the camera head, unscrew it to reveal the microSD card slot and Reset Button. While the camera is powered on, press and hold the reset button for about 10 seconds until you hear an audio prompt or chime confirming factory restoration.
What warranty and technical support options are provided?
A: The product includes a 2-year limited warranty when purchased from official Reolink channels or authorized resellers. Free lifetime technical support, firmware updates, and troubleshooting resources are accessible anytime online at https://reolinkmalaysia.com.my/support.
