Reolink FishEye WiFi

6MP Indoor Wi-Fi Security Camera with 360° Blindspot-Free View

2K+ 6MP Super HD Resolution for Clarity
360° Panoramic View for Complete Area Coverage
Multiple Display Modes with Digital Dewarping
Dual-Band WiFi for Stable Wireless Connection
Smart Person Detection with Built-In Siren
Two-Way Audio for Real-Time Remote Communication

Price range: RM799.00 through RM1,549.00

Addons

Storage

Clear

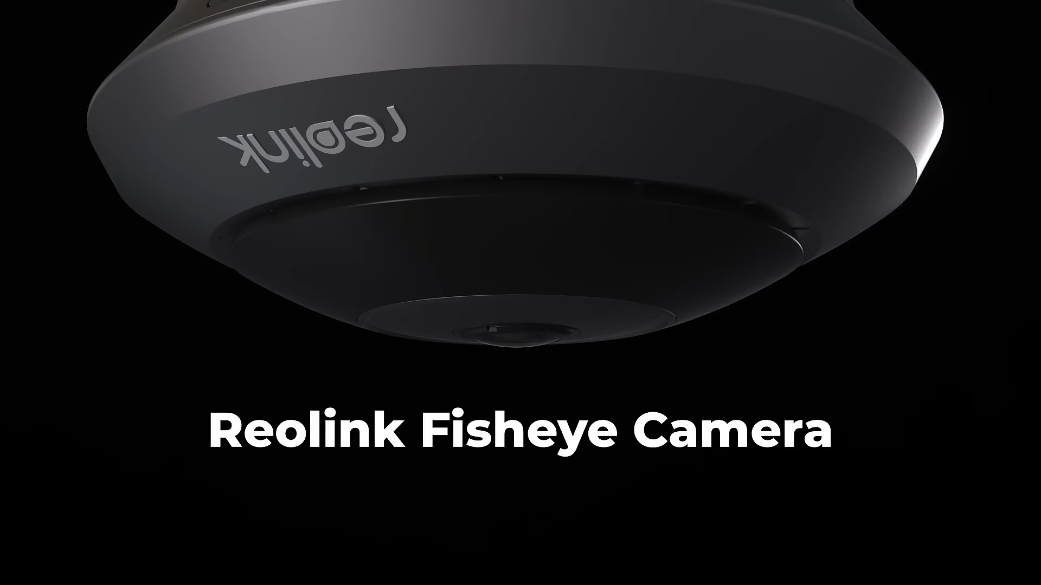

Reolink FishEye WiFi

FishEye WiFi Video

5 Videos

Others Video

Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.

Check it Out

Overview & General Specifications

What is the Reolink FishEye WiFi security camera?

A: The Reolink FishEye WiFi is a compact indoor 6MP Super HD panoramic security camera. Equipped with an ultra-wide fisheye lens, dual-band WiFi connectivity, and smart AI detections, it delivers a complete 360-degree panoramic field of view to monitor an entire room, store, office, living room, or warehouse using a single camera unit.

What are the main key features of the Reolink FishEye WiFi?

A: Key features include:

6MP Super HD Resolution (2560 x 2560 pixels at 20fps / up to 25fps)
360-Degree Panoramic View (180-degree horizontal, vertical, and diagonal field of view)
Dual-Band WiFi Connectivity (2.4 GHz and 5 GHz bands)
Multiple Display Dewarping Modes (Fisheye, Panorama, Dual Panorama, Quad View, and Multi-Point modes)
Smart AI Detections (Person and Motion Detection)
Two-Way Audio with built-in microphone and speaker
Infrared Night Vision up to 8 meters (26 feet)
Local MicroSD Onboard Storage supporting cards up to 512GB

What items are included in the package box when purchasing the camera?

A: The standard package includes:

Reolink FishEye WiFi Camera
DC 12V 1A Power Adapter
4.5 Meter Power Extension Cable
1 Meter Network Cable
Mount Base
Mounting Hole Template
Pack of Mounting Screws and Anchors
24/7 Surveillance Warning Sticker
Quick Start Guide / Operational Instructions

What are the physical dimensions, weight, and weather resistance rating of the unit?

A:

Dimensions: 126 mm diameter x 49.2 mm height
Weight: 293 grams
Weather Resistance: The Reolink FishEye WiFi is strictly an indoor camera without an IP weatherproof rating. It must be used in indoor environments with operating temperatures between -10C and +55C (14F to 131F) and operating humidity levels between 10% and 90%.

What warranty coverage and smart home integrations does the camera support?

A: The device comes with a 2-year limited warranty backed by official Reolink technical support. It is compatible with Google Assistant, allowing live video streaming to smart displays using voice commands.

Optics, 360-Degree Panoramic View & Dewarping Modes

How does the camera achieve a full 360-degree room view?

A: The camera combines a 1/2.5-inch CMOS image sensor with an ultra-short fixed 1.98mm focal length lens (F2.0 aperture with IR Cut). This optical design produces a 180-degree horizontal, 180-degree vertical, and 180-degree diagonal viewing angle, delivering complete 360-degree panoramic room coverage when ceiling mounted.

What video resolution, frame rate, and compression standard are supported?

A:

Resolution: 6MP Super HD (2560 x 2560 pixels).
Frame Rate: 2 fps to 25 fps (Default: 20 fps).
Main Stream Bitrate: 4096 Kbps to 8192 Kbps (Default: 5120 Kbps).
Sub Stream Bitrate: 64 Kbps to 512 Kbps (Default: 256 Kbps).
Video Compression: H.265.

What dewarping display modes are available in the Reolink App and Client?

A: Via the Reolink App and Reolink Client software, the raw circular fisheye feed can be dewarped in real time into multiple user-friendly viewing modes, including:

What are the infrared night vision specifications of the Reolink FishEye WiFi?

A: For clear monitoring in complete darkness, the camera features 3 built-in 850nm infrared LEDs with an auto-switching IR-cut filter, providing black-and-white night vision coverage up to 8 meters (26 feet).

Does the Reolink FishEye WiFi support two-way audio communication?

A: Yes, the camera features an integrated microphone and built-in speaker, enabling full two-way real-time voice communication through the Reolink App or Client software.

WiFi Connectivity, Network Protocols & System Compatibility

What WiFi frequencies and wireless security standards does the camera support?

A: The Reolink FishEye WiFi supports dual-band WiFi operating on both 2.4 GHz and 5 GHz frequency bands under IEEE 802.11a/b/g/n wireless standards with WPA-PSK and WPA2-PSK security encryption.

How is the Reolink FishEye WiFi powered? Does it support PoE?

A: The Reolink FishEye WiFi is a plug-in DC camera powered by an included DC 12.0V, 1A power adapter (Power consumption under 12W) connected to its tail cable power jack. It does not support Power over Ethernet (PoE).

Does the camera feature an Ethernet cable port?

A: Yes, the camera's tail cable includes one 10M/100Mbps RJ45 Ethernet port. It can be used for initial setup, wired network connection to a router, or connecting directly to a Reolink NVR over LAN.

Which web browsers, computer OS, and mobile apps are compatible with the camera?

A:

Computers: Windows PC and Mac OS via the Reolink Client.
Mobile Devices: iOS and Android via the official Reolink App.
Web Browsers: Google Chrome, Microsoft Edge, Mozilla Firefox, and Apple Safari.
Supported Protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, and P2P.

How many simultaneous user accounts and video streams are supported?

A:

Smart AI Detections, Alarm Alerts & Recording Options

What smart AI detection and alert capabilities does the camera offer?

A: Onboard AI processing provides real-time event identification and filtering for:

What local storage capacity is supported on the device?

A: The camera contains a built-in MicroSD card slot located behind a protective cover on the camera body side that supports microSD cards with storage capacities up to 512GB.

What video recording modes are available on the camera?

A:

Can the camera record continuously 24/7 without a monthly subscription fee?

A: Yes, the Reolink FishEye WiFi supports local 24/7 continuous recording directly to an onboard microSD card (Up to 512GB) or a Reolink NVR without requiring any mandatory monthly cloud subscription plans or service fees.

Does the camera support Time Lapse recording?

A: Yes, users can access the Time Lapse feature in the Reolink App to record long-duration indoor events (Such as retail foot traffic, room setups, or office meetings) and play them back as accelerated video clips.

Hardware Features, Onboard Storage & Mounting Options

Where are the physical hardware ports, slots, and reset button located on the camera?

A:

Where can the Reolink FishEye WiFi camera be installed?

A: The camera is designed primarily for ceiling mounting (Which provides a true central 360-degree room view) and wall mounting (Which provides an expansive 180-degree panoramic wall-to-wall view).

Is the Reolink FishEye WiFi suitable for outdoor installation?

A: No, this camera is strictly engineered for indoor use. It lacks weather sealing against rain, snow, or direct moisture exposure. Installing it outdoors will lead to water damage and void the manufacturer warranty.

How does the quick-mount base and locking mechanism work?

A: The circular mount base is fixed to the wall or ceiling using screws. The camera body is aligned with the mounting tabs on the base (Matching the orientation arrow on the camera to the lock icon on the base) and rotated clockwise until it clicks into the locked position.

How do you release the camera from its mounting base?

A: To detach the camera for maintenance or microSD card access, press the plastic release mechanism catch located on the camera rim and rotate the camera counterclockwise to unlock it from the base.

Setup, Installation & Troubleshooting Guide

How do you set up the Reolink FishEye WiFi using a WiFi connection in the Reolink App?

A:

Connect the camera to power using the DC 12V power adapter.
Open the Reolink App on your smartphone and tap the "+" icon in the top right corner.
Scan the QR code on the back of the camera or tap "Input UID/IP" to manually enter the 16-character UID.
Tap "Choose WiFi Connection", select your 2.4GHz or 5GHz WiFi network, and enter the password.
Hold your smartphone screen displaying the generated QR code about 20 cm (8 inches) in front of the lens until you hear a beep.
Create an admin password, assign a device name, and tap "Finish" to complete setup.

How do you set up the camera using an Ethernet cable connection?

A:

Connect the camera to power using the DC 12V adapter and connect its RJ45 port to your router using an Ethernet cable.
Open the Reolink App, tap "+", and select the detected device under "LAN" or scan the QR code.
Tap "Choose Network Cable Connection" and tap "Access the Camera".
Create an admin password, assign a camera name, and configure your WiFi credentials to switch to wireless mode later if desired.

How do you perform a factory reset on the Reolink FishEye WiFi?

A: Open the protective flap on the side of the camera body to access the reset button. While the camera is powered on, insert a pin or reset needle and press and hold the reset button for 5 seconds until you hear an audio prompt confirming that factory default settings have been restored.

What troubleshooting steps should I take if the camera fails to power on?

A:

Verify that the DC 12V 1A power adapter is securely plugged into a working electrical outlet.
Inspect the DC power jack connection on the camera's tail cable to ensure a tight connection.
Test the unit using a known working DC 12V 1A power adapter or power extension cable.
If the camera still fails to power on, contact Reolink Support at https://reolinkmalaysia.com.my/support.

What troubleshooting steps should I take if WiFi setup fails or video is distorted?

A:

WiFi Connection Failed: Verify that you entered the WiFi password correctly. Place the camera closer to the router during setup to ensure a strong signal. Ensure WiFi network encryption is set to WPA2-PSK/WPA-PSK.
Blurry or Distorted Feed: Gently wipe the curved fisheye lens with a soft microfiber cloth to remove dust or fingerprints. Ensure you have selected the appropriate dewarping mount mode (Ceiling vs. Wall) in the Reolink App under Device Settings > Display.
