Reolink TrackMix Battery

4K Dual-View Battery Camera with 6x Hybrid Zoom & Color Night Vision

Dual-Lens Design for Simultaneous Dual Views
Auto-Tracking with Pan, Tilt, and Zoom
Rechargeable Battery with Solar Panel Support
Dual-Band WiFi for Stable Wireless Connectivity
Smart Person, Vehicle, and Animal Detection
Color Night Vision with Built-In Spotlights

Price range: RM1,399.00 through RM2,587.00

Addons

Storage

Clear

Reolink TrackMix Battery

TrackMix Battery Video

6 Videos

Solar Panel Video

Others Video

Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.

Check it Out

Dual-Lens Optics, 4K Video & Dual-View Display

What lens architecture and video resolution does the Reolink TrackMix Battery feature?

A: The Reolink TrackMix Battery features an optical dual-lens system combining a wide-angle lens (f=2.8mm, F1.6) and a telephoto lens (f=8.0mm, F1.6) powered by dual 1/3-inch and 1/2.7-inch CMOS sensors. The wide-angle lens captures 4K Ultra HD video at 3840x2160 resolution at 15 fps, while the telephoto lens delivers 1080p Full HD video (1920x1080 at 15 fps), presenting both views simultaneously on a single screen.

What is Dual-View Display and how does it work?

A: Dual-View Display is an on-screen viewing mode that presents two synchronized video streams side by side or in picture-in-picture mode within the Reolink App and Client:

What is the field of view (FOV) of each lens on the TrackMix Battery?

A:

Which video compression codecs and frame rates are supported?

A: The camera supports high-efficiency H.265 (HEVC) as well as legacy H.264 video compression. Video streams are encoded at an energy-optimized 10 fps to 15 fps (Default is 15 fps) to deliver fluid surveillance recording while conserving battery reserves and wireless network bandwidth.

What night vision modes are available on the TrackMix Battery?

A: The camera provides two night vision modes:

PTZ Mechanics, Auto-Zoom Tracking & Presets

What are the pan and tilt rotation ranges of the TrackMix Battery?

A: The camera is engineered with a motorized pan/tilt mechanical base providing:

What is Auto-Zoom Tracking and how does it operate?

A: Auto-Zoom Tracking leverages the camera's dual-lens array and motorized pan/tilt gimbal. When an authorized target (Person, vehicle, or animal) is detected, the camera automatically pans and tilts to keep the subject centered in the wide-angle frame while the telephoto lens automatically magnifies and tracks the subject in a simultaneous closeup window.

What tracking styles can be selected in the camera settings?

A: You can configure three tracking styles to match your installation:

Digital Tracking: The physical camera body stays stationary, while the telephoto view digitally zooms and pans across the frame.
Digital Tracking First: The camera prioritizes digital closeup framing within the static field of view, panning physically only when the target approaches the edge of the screen.
Pan/Tilt Tracking First: The camera physically pans and tilts immediately as the subject moves, keeping both the wide-angle and closeup feeds centered on the action.

How many preset points and guard positions can be configured?

A: The TrackMix Battery supports 1 customizable Guard Position and up to 32 user-defined Preset Points. After completing a motion-tracking event or manual patrol, the camera automatically returns to its designated Guard Position to resume monitoring the primary coverage area.

Does the TrackMix Battery support continuous automatic patrols?

A: Because the TrackMix Battery is powered by an internal battery, continuous 24/7 mechanical patrolling is disabled to preserve battery charge. However, users can tap any of the 32 saved preset positions at any time to swiftly swing the camera to pre-configured angles of interest.

Power System, Battery Life & Solar Panel Integration

What is the battery capacity and specifications of the TrackMix Battery?

A: The camera is equipped with a built-in high-capacity 5100mAh (7.2V / 36.72Wh) rechargeable lithium-ion battery pack. It is recharged via an outdoor-sealed USB Type-C port using a standard DC 5V / 2A power adapter (Supports USB-A to USB-C charging cables).

How long does the battery last on a single charge?

A: Battery life varies based on motion activity, environment temperatures, and user interaction:

Which solar panels are compatible with the TrackMix Battery?

A: The camera connects natively to Reolink solar panels via its weather-sealed USB-C charging lead:

Reolink Solar Panel 2 (6W): The standard solar solution providing trickle charge under 2 to 3 hours of direct daily sunlight.
Reolink Solar Panel 2S (6W with Built-in Battery): Adds an external 5900mAh buffer battery that bypasses low-temperature lithium charging thresholds down to -10 degrees Celsius.
Reolink Solar Panel 3 (12W): Delivers high-current charging optimized for high-traffic zones and winter sun angles.

Why does the camera refuse to recharge below freezing (0°C / 32°F)?

A: Standard lithium battery chemistries cannot be safely recharged below 0 degrees Celsius (32 degrees Fahrenheit) without risking permanent metallic lithium plating and internal damage. The camera's battery management system (BMS) automatically halts charging below freezing and resumes once temperatures rise back into the safe charging range (0 degrees Celsius to 45 degrees Celsius).

Can the TrackMix Battery record continuously 24/7 like a wired camera?

A: No. Battery-powered security cameras are engineered for event-driven wake-and-record operation. Constant 24/7 video streaming and recording would deplete the 5100mAh battery pack within a day. Instead, the camera operates in ultra-low-power standby, waking within fractions of a second upon PIR motion detection or live app access.

PIR Motion Detection, Edge AI & Active Deterrence

How does the passive infrared (PIR) motion detection system work?

A: The TrackMix Battery utilizes an integrated hardware PIR sensor with a 100-degree horizontal sensing angle and an adjustable detection range up to 11 meters (36 feet). The PIR sensor detects thermal signatures (Infrared energy emitted by people, vehicles, and animals) to wake the camera instantly from low-power sleep.

Which smart AI target classification categories are supported?

A: Once awakened by the PIR sensor, on-device neural algorithms analyze object silhouettes to classify targets into:

What active deterrence features are built into the camera?

A: The camera includes two automated active deterrence tools:

Does the TrackMix Battery support two-way interactive audio?

A: Yes. The camera features a built-in noise-canceling microphone and an integrated high-output loudspeaker, enabling real-time full-duplex two-way audio conversations with delivery couriers, visitors, or unwanted trespassers directly through the Reolink App or Client.

What notifications and alert actions occur when motion is detected?

A: When an alarm rule is triggered, the camera can execute:

Dual-Band WiFi 6, Bluetooth Setup & Ecosystem Compatibility

What WiFi standards and frequency bands does the camera support?

A: The TrackMix Battery is equipped with dual-band WiFi 6 technology (IEEE 802.11 a/b/g/n/ac/ax) supporting both 2.4 GHz and 5 GHz frequency bands:

What role does Bluetooth play during the initial camera setup?

A: The camera incorporates Bluetooth V5.0. During initial onboarding, the Reolink App can automatically discover nearby powered-on TrackMix cameras via Bluetooth, streamlining the WiFi pairing process without requiring repetitive QR code scans.

Can the TrackMix Battery connect to a Reolink NVR?

A: Battery-powered cameras cannot be connected directly to traditional PoE ports on standard Reolink NVRs (Such as RLN8 or RLN16). However:

Does the camera integrate with smart home voice assistants?

A: Yes. The TrackMix Battery natively supports Google Assistant and Amazon Alexa. You can cast live camera feeds directly to smart screen devices (Such as Google Nest Hub or Amazon Echo Show) using voice commands like "Hey Google, show me the backyard."

Does the camera support ONVIF, RTSP, or third-party surveillance software?

A: No. Like all Reolink battery-powered cameras, the TrackMix Battery utilizes proprietary sleep-and-wake transmission protocols to preserve battery reserves. It does not support standard continuous ONVIF or open RTSP streams, and cannot be linked to third-party VMS software such as Blue Iris or Synology Surveillance Station.

Storage Options, Mounting Installation & Maintenance

What local and network storage destinations are supported?

A:

MicroSD Card: Supports onboard storage via an integrated card slot accommodating MicroSD cards up to 512GB (FAT32/exFAT format, Class 10 or higher recommended).
Reolink Home Hub: Wirelessly archives encrypted motion recordings across local SATA storage without cloud subscription fees.
Reolink Cloud: Encrypted cloud video backup available in supported geographic regions.

Where are the physical controls, reset button, and MicroSD card slot located?

A: On the underside of the rotating sphere, a weather-sealed silicone rubber flap conceals:

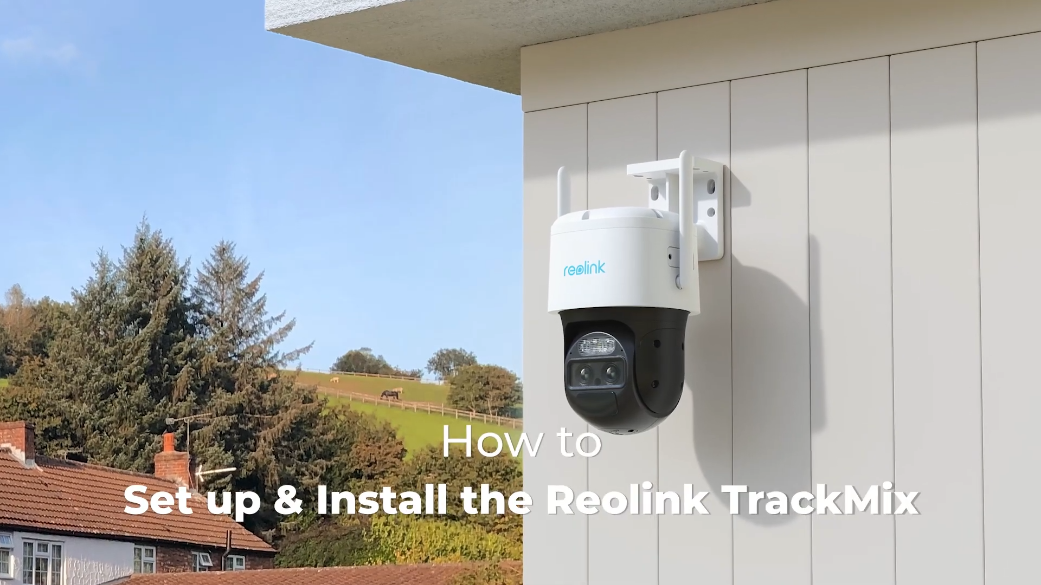

How is the TrackMix Battery mounted to a wall or ceiling?

A: The multi-purpose mounting bracket supports both orientations:

Wall Mounting: Fasten the vertical backplate of the bracket to an exterior wall using the supplied screws and drywall anchors. The camera housing sits upright with the dual lenses overlooking the property.
Ceiling / Soffit Mounting: Fasten the top plate of the bracket to an overhead ceiling or eaves soffit. In the Reolink App, use the PTZ controls to adjust the camera angle and ensure the wide-angle lens monitors your target boundary.

What is the weatherproof rating and working temperature range?

A:

What items are included in the retail box, and what is the warranty coverage?

A: Package Contents:

Reolink TrackMix Battery (B770) Camera
Mounting Bracket with attached base
USB-C Charging Cable
Mounting Hole Template
Pack of Screws
Drywall Anchors
24-Hour Video Surveillance Warning Sticker
Quick Start Guide

A: Warranty:
