Reolink TrackMix LTE Plus 2

Smart 4MP 4G LTE Dual-Lens PTZ with 24/7 Continuous Battery Recording

Dual-Lens Design for Simultaneous Dual Views
Auto-Tracking with Pan, Tilt, and Zoom
4G LTE Connectivity for Off-Grid Monitoring
Continuous 24/7 Recording with Solar Battery
ColorX Technology for Full-Color Night Vision
Smart Person, Vehicle, and Animal Detection

Price range: RM3,599.00 through RM4,349.00

Addons

Storage

Clear

Reolink TrackMix LTE Plus 2

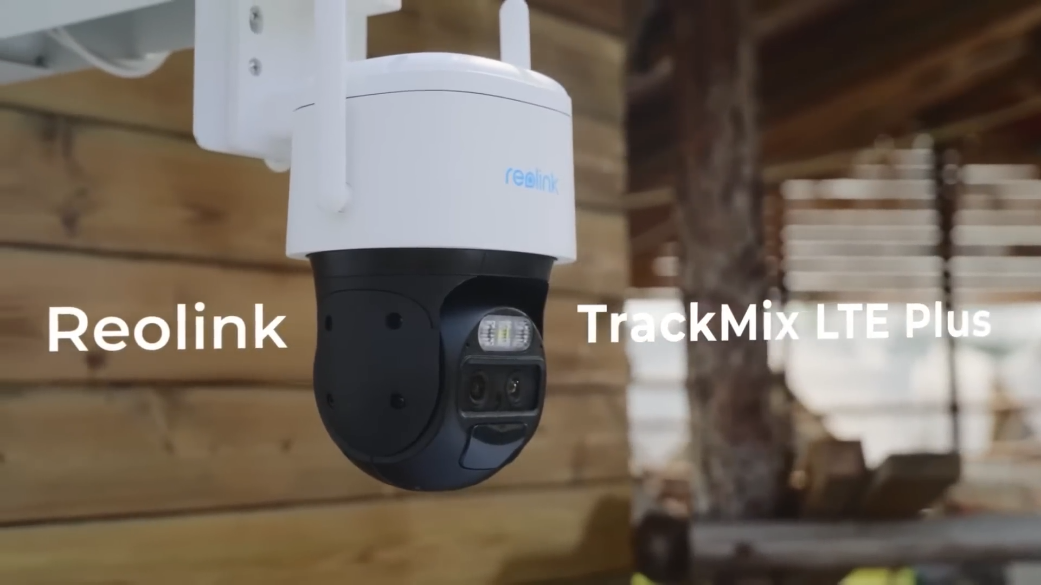

TrackMix LTE Plus 2 Video

6 Videos

Solar Panel Video

Others Video

Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.

Check it Out

Dual-Lens Optics, 2K 4MP Video & ColorX Night Vision

What lens configuration and video resolution does the Reolink TrackMix LTE Plus 2 feature?

A: The Reolink TrackMix LTE Plus 2 is engineered with an advanced dual-lens optical system utilizing 1/1.8-inch CMOS image sensors. It pairs a wide-angle lens (f=2.8mm, F1.0 super aperture) and a dedicated telephoto lens (f=12mm, F1.6 aperture). The mainstream video feed delivers 2K 4MP Quad HD resolution at 2560x1440 at 15 fps, while the substream encodes at 896x512 at 15 fps. This dual-lens array presents both an expansive wide overview and a sharp magnified closeup simultaneously.

What is Dual-View Display and how does it function on this camera?

A: Dual-View Display delivers two synchronized video streams on a single screen within the Reolink App or Client:

Panoramic Overview: The wide-angle lens maintains a broad field of view (102.7 degrees horizontal) to monitor your entire property boundary.
Magnified Closeup: The telephoto lens (37.54 degrees horizontal) automatically tracks and magnifies moving targets within the same frame. Both views are displayed side-by-side or in picture-in-picture mode, eliminating optical blind spots during surveillance events.

What is ColorX Night Vision and how does it deliver full-color video without spotlights?

A: ColorX is Reolink's next-generation night vision technology powered by an ultra-large F1.0 aperture lens and a highly light-sensitive 1/1.8-inch sensor. The F1.0 aperture captures four times more light than conventional F2.0 security lenses. This allows the TrackMix LTE Plus 2 to produce vivid, true-to-life full-color surveillance footage in ultra-low-light nighttime conditions without requiring auxiliary spotlights or infrared lights.

What is the Field of View (FOV) across both lenses?

A:

What supplemental night vision and lighting modes are available?

A: In addition to ColorX ambient night vision, the camera is equipped with:

PTZ Mechanics, Auto-Zoom Tracking & Guard Positions

What are the pan and tilt rotation ranges of the TrackMix LTE Plus 2?

A: The camera is built upon a high-precision motorized pan/tilt mechanical base providing:

What is Auto-Zoom Tracking and how does it follow moving targets?

A: Auto-Zoom Tracking coordinates the camera's motorized pan/tilt gimbal with its dual-lens optics. When a classified target (person, vehicle, or animal) enters the monitoring area, the camera physically pans and tilts to keep the subject centered in the panoramic feed, while the telephoto lens automatically magnifies and tracks the subject in a simultaneous closeup window.

What tracking styles can be selected in the camera settings?

A: You can choose between three tracking styles depending on your deployment environment:

Digital Tracking: The mechanical body remains stationary while the telephoto feed digitally pans and zooms across the fixed frame.
Digital Tracking First: The camera prioritizes digital closeup framing within its current view, rotating mechanically only when the target approaches the outer edge of the frame.
Pan/Tilt Tracking First: The camera physically pans and tilts immediately as the target moves, keeping both the wide-angle and closeup views centered on the subject.

How many preset points and guard positions can be configured?

A: The camera supports up to 32 user-defined preset positions and 1 customizable Guard Position. After completing an auto-tracking event or manual pan/tilt patrol, the camera automatically returns to its designated Guard Position to resume monitoring your primary area of concern.

Does the TrackMix LTE Plus 2 support continuous automatic patrols?

A: While you can save up to 32 preset points to swing the camera swiftly to pre-configured angles, continuous repetitive 24/7 mechanical patrolling is disabled to optimize power efficiency and protect the mechanical gimbal drive.

Heavy-Duty Power Architecture, 92Wh Battery & 30W Solar Panel

What makes the power system of the TrackMix LTE Plus 2 unique compared to standard battery cameras?

A: The TrackMix LTE Plus 2 features an industrial, high-capacity external battery pack pre-installed inside the heavy-duty mounting bracket. The battery pack boasts an enterprise-grade capacity of 12,800mAh at 7.2V (92Wh total energy storage), paired with a commercial-grade 30W Reolink Solar Panel Plus to maintain continuous off-grid security.

Can the TrackMix LTE Plus 2 record continuously 24/7?

A: Yes. Unlike standard battery cameras that only support brief motion-triggered recordings, the TrackMix LTE Plus 2 supports true 24/7 continuous recording. Its massive 92Wh battery pack and high-harvest 30W Solar Panel Plus generate and store sufficient surplus energy to sustain continuous round-the-clock video recording under typical solar exposure conditions.

What are the specifications and advantages of the included 30W Solar Panel Plus?

A: The included Reolink Solar Panel Plus measures 403 mm x 396 mm x 25 mm and weighs 2.4 kg. Producing up to 30W of solar charging power, it captures five times more solar energy than standard 6W camera panels. This high charging yield ensures rapid battery recovery during winter seasons, overcast weather, and heavy continuous-recording workloads.

How do the power button and LED status lights operate on the 92Wh battery pack?

A: The battery pack features a multifunctional power button and dual LED indicators (Red and Green):

Power On: Press and hold the power button for 1 second (both Red and Green LEDs flash rapidly for 3 seconds, then stay solid for 3 seconds).
Power Off: Press and hold the power button for 3 seconds (both Red and Green LEDs flash and turn off).
Check Battery Status: Short-press the button once.
Charging: Green LED flashes.
Fully Charged: Green LED stays solid.
Low Battery Warning: Red LED flashes.
No Charge: LEDs remain completely off.

What is the operating temperature range and charging logic in freezing weather?

A: The camera and battery pack operate in extreme outdoor temperatures from -20 degrees Celsius to +55 degrees Celsius (-4 degrees Fahrenheit to 131 degrees Fahrenheit). To protect internal lithium cells from permanent damage caused by metallic lithium plating, standard battery recharging safely operates between 0 degrees Celsius and 45 degrees Celsius (32 degrees Fahrenheit to 113 degrees Fahrenheit).

4G LTE Cellular Connectivity, SIM Setup & Data Consumption

What cellular networks, bands, and SIM card formats are supported?

A: The TrackMix LTE Plus 2 operates completely untethered over 3G and 4G LTE mobile data networks without requiring Wi-Fi. It uses a standard Nano SIM card supporting WCDMA and FDD/TDD LTE bands across dedicated regional hardware versions:

How do you prepare and install the Nano SIM card?

A:

Activate the Nano SIM card on an active mobile data plan with your cellular carrier.
If the SIM card has a PIN lock enabled, insert it into a smartphone first to disable the PIN lock before placing it into the camera.
Unscrew the weather-sealed hatch on the camera body using a #1 Phillips screwdriver.
Insert the provided SIM ejector tool into the hole beside the SIM tray to pop open the tray.
Place the Nano SIM card firmly into the tray, push the tray into the camera until it clicks into place, and securely refasten the hatch cover.

What do the camera's LED indicator and voice prompts indicate during network onboarding?

A:

Red LED Solid, then Turns Off: The camera is reading the SIM card hardware.
Flashing Blue LED, then Solid Blue: The camera has established a cellular connection.
Voice Prompt "Network Connection Succeeded": The camera is online and ready to be bound to the Reolink App.
Voice Prompt "SIM Card Cannot Be Recognized": Ensure the SIM card is seated properly and not inserted backward.
Voice Prompt "The SIM Card Is Locked with a PIN": Place the SIM into a phone and disable the PIN code.
Voice Prompt "Not Registered on Network": Check carrier coverage, signal strength, or verify data subscription status with your operator.

How much cellular data does the camera consume?

A: Data usage depends on recording mode, live viewing duration, and streaming resolution:

Event-Driven PIR Mode: Consumes between 2GB and 5GB monthly under average motion triggers (15 to 25 events daily) and periodic remote check-ins.
24/7 Continuous Remote Streaming: Streaming live video continuously over 4G LTE consumes significant bandwidth (approximately 1GB to 2GB per hour in 2K "Clear" mode and 150MB to 250MB per hour in "Fluent" substream mode). Continuous local recording directly to the MicroSD card does NOT consume cellular data.

What role does Bluetooth V5.0 play during camera setup?

A: The TrackMix LTE Plus 2 incorporates Bluetooth V5.0. During initial onboarding in the Reolink App, Bluetooth automatically discovers nearby powered-on TrackMix cameras, streamlining cellular registration and device binding without repetitive manual configuration.

PIR Sensing, Smart AI Detection & Active Deterrence

What are the detection range and angle specifications of the PIR sensor?

A: The camera is equipped with an integrated wide-angle passive infrared (PIR) motion sensor featuring:

Which smart AI target classification categories are supported?

A: Powered by on-device neural processing algorithms, the TrackMix LTE Plus 2 recognizes and categorizes targets into:

What recording schedules and modes can be configured?

A: The camera provides three versatile recording modes:

Triggered Recording: Records video clips only when motion or classified AI events occur.
Pre-Recording: Caches video moments before a PIR motion trigger occurs to capture the complete lead-up to an incident.
24/7 Continuous Recording: Uninterrupted round-the-clock surveillance recording sustained by the 92Wh battery and 30W solar panel.

What active deterrence features are built into the camera?

A: The TrackMix LTE Plus 2 incorporates two automated active deterrence tools:

Does the camera support two-way interactive audio and instant notifications?

A: Yes. The camera features a built-in noise-canceling microphone and a high-output speaker for real-time, full-duplex two-way voice conversations via the Reolink App or Client. When an alert rule is triggered, the camera sends instant mobile push notifications and rich email alerts with captured photo snapshots.

Storage Options, Heavy-Duty Installation & Package Contents

What local storage capacity is supported, and where is the card slot located?

A: The camera supports onboard local storage via a waterproof MicroSD card slot accommodating cards up to 512GB (FAT32 format, Class 10 or higher recommended). The MicroSD card slot is located on the underside of the rotating sphere beneath a weather-sealed metal hatch secured by screws.

Does the TrackMix LTE Plus 2 support smart home assistants or cloud backup?

A:

Smart Home Voice Assistants: Natively integrates with Google Assistant and Amazon Alexa to cast live camera feeds to smart screen displays.
Reolink Cloud: Supports encrypted off-site cloud video backup in selected countries and subscription plans.
Note: Like all cellular battery cameras, open third-party ONVIF, RTSP, and FTP streaming protocols are not supported.

How is the heavy-duty mounting bracket installed on walls or poles?

A: The industrial mounting bracket supports two heavy-duty installation methods:

Wall Mounting: Use the mounting template to drill four 1/2-inch diameter holes (2 inches deep), insert the supplied expansion anchor bolts, position the bracket with the Reolink logo facing up, and tighten the nuts firmly using the included #17 wrench.
Pole Mounting: Thread the two included heavy-duty metal hoops through the four slots on the mounting bracket base, wrap the hoops tightly around the utility pole or tree trunk, and tighten the hoop bolts securely with a #2 Phillips screwdriver.

What is the correct procedure for wiring the solar panel, battery pack, and camera?

A:

Mount the 30W Solar Panel Plus above the mounting bracket using the solar bracket and #14 wrench.
Plug the solar panel's USB-C output cable into the battery pack's USB-C IN port.
Plug the battery pack's USB-C output cable into the camera's USB-C IN port.
Ensure all custom-molded silicone gaskets are pressed firmly into the ports to create an airtight, IP65 waterproof seal.
Long-press the battery pack power button for 1 second to energize the system.

What are the physical dimensions, weights, and included box contents?

A: Dimensions & Weights:

A: Package Contents:

TrackMix LTE Plus 2 Camera
30W Solar Panel Plus
Solar Panel Bracket
Heavy-Duty Mounting Bracket (with pre-installed 92Wh battery pack)
Screw Packs (for bracket, solar panel, solar bracket, and camera with SIM ejector tool)
Metal Hoops (for pole mount)
Metal Wire Safety Hook
Hex Key
Dual Open-End Wrench (#14 & #17)
Mounting Hole Template
24-Hour Video Surveillance Warning Sign
Operational Instructions Guide

A: Warranty:
