Smart 12MP Ultra HD PoE Turret Camera with Color Night Vision
12MP Ultra HD Resolution for Stunning Clarity
Color Night Vision with Built-In Spotlight
Smart Person, Vehicle, and Pet Detection
Power Over Ethernet for Easy Wired Setup
Two-Way Audio with Built-In Security Siren
Rugged IP67 Weatherproof Turret Housing Design
RM529.00–RM1,279.00Price range: RM529.00 through RM1,279.00
Reolink RLC-1224A
RLC-1224A Video
5 Videos
Others Video
Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.
What is the video resolution and image sensor specification of the Reolink RLC-1224A?
A: The Reolink RLC-1224A features a 1/2.49-inch CMOS image sensor capable of capturing 12-Megapixel Ultra HD video (4512 x 2512 pixels at 20 frames per second). This exceptionally high resolution delivers extreme sharpness and detail clarity for long-range and wide-area security surveillance.
What are the lens specifications and field of view for the RLC-1224A?
A: The camera is equipped with a fixed f=4.0mm focal length lens with a large F1.6 aperture and an auto-switching IR-cut filter. The F1.6 large aperture allows more ambient light to enter the sensor for superior low-light performance. Its field of view covers:
Horizontal Field of View: 93 degrees
Vertical Field of View: 49 degrees
What night vision capabilities and illumination specs does the camera provide?
A: The RLC-1224A offers dual night vision modes for round-the-clock protection:
Infrared Night Vision: Utilizes 2 high-performance IR LEDs (850nm, 28mil) to deliver crisp black-and-white footage up to 30 meters (100 feet) in total darkness.
Color Night Vision: Powered by a built-in 4.3W spotlight (6500K color temperature, 700 lumens) that illuminates the area to capture full-color video at night.
What are the physical dimensions, weight, and build design of the RLC-1224A?
A: The Reolink RLC-1224A features a compact turret-style casing constructed from durable aluminum metal. It measures 117.4mm in diameter by 103.8mm in height (4.62 inches x 4.09 inches) and weighs approximately 515 grams (1.13 lbs).
What weather resistance ratings and operational temperature limits apply to this camera?
A: The camera possesses an IP67 weatherproof rating, offering full protection against dust ingress, heavy rain, and snow. It operates reliably in environmental temperatures ranging from -10 degrees Celsius to 55 degrees Celsius (14 degrees Fahrenheit to 131 degrees Fahrenheit) with operating humidity levels between 10% and 90%.
Power, PoE & Network Connectivity
How is the Reolink RLC-1224A powered?
A: The camera supports two flexible power options:
Power over Ethernet (PoE): Powered over a single network cable compliant with the IEEE 802.3af standard (Active 48V PoE) using a PoE switch, PoE injector, or Reolink PoE NVR.
DC Power Adapter: Powered independently using an optional DC 12.0V, 1A power adapter (Power consumption is under 12W).
What network interface does the RLC-1224A use?
A: The camera connects to local network equipment via a standard wired Ethernet connection through an RJ45 port supporting 10Mbps / 100Mbps data transfer speeds.
Does the Reolink RLC-1224A support wireless WiFi connections?
A: No. The RLC-1224A is a dedicated wired PoE IP camera and requires a physical Ethernet cable connection for network data transmission.
What connection ports are located on the camera's trailing pigtail cable?
A: The trailing cable includes four primary components:
DC Power Jack: For connecting an optional 12V 1A DC power supply.
Hardware Reset Button: Located under a protective screw cap on the cable assembly.
RJ45 Ethernet Connector: For network data transmission and IEEE 802.3af PoE power supply.
Waterproof Lid Assembly: For sealing the Ethernet RJ45 connection against outdoor moisture.
Can I use both a DC power adapter and PoE power simultaneously?
A: Only one power source is necessary for operation. Using Power over Ethernet (PoE) is recommended for single-cable deployment. However, a 12V 1A DC power adapter can be plugged in alongside an Ethernet cable as a redundant backup power supply.
Smart AI Detection & Deterrence Features
What smart AI detection capabilities are built into the RLC-1224A?
A: The camera incorporates onboard hardware AI algorithms capable of analyzing and distinguishing human, vehicle, and pet/animal shapes from general background motion. This local target processing filters out non-threatening movements (Such as swaying foliage or flying insects) to dramatically reduce false alerts.
Does the camera support two-way audio?
A: Yes. The RLC-1224A includes both a built-in microphone and a built-in speaker, enabling real-time two-way voice communication with visitors or intruders through the Reolink App or Client software.
How do the spotlight and siren function as active deterrence tools?
A: Upon detecting a suspicious person, vehicle, pet, or motion event, the camera can automatically trigger its bright 700-lumen spotlight and sound its internal audio siren to warn off intruders.
Does the RLC-1224A support smart home voice integration?
A: Yes. The camera is compatible with Google Assistant, allowing users to stream live camera footage onto supported smart displays using simple voice commands.
How are security notifications delivered when motion is detected?
A: When an alert is triggered, the camera can send instant push notifications to your mobile phone, dispatch email alerts attached with snapshot photos or video clips, and activate the local spotlight and siren deterrence system.
Storage, Bitrate & Recording Operational Modes
Where is the microSD card slot located and what maximum capacity is supported?
A: The camera features an onboard microSD card slot supporting card capacities up to 512GB. To locate the slot, manually rotate the inner camera eyeball lens assembly upward/downward to reveal the hidden weather-sealed hatch on the bottom of the lens sphere.
What recording modes are supported on the RLC-1224A?
A: The camera supports three flexible operational recording modes:
Motion-Triggered Event Recording: Records video clips only when motion or AI smart targets (Person, vehicle, pet) are detected (Default setting).
Scheduled Recording: Records continuously during pre-configured hours set within the app/client.
Continuous 24/7 Recording: Saves continuous video footage non-stop to a microSD card, off-site FTP server, or Reolink PoE NVR.
What video compression formats, frame rates, and bitrates are used?
A: The camera supports both H.265 and H.264 video compression formats:
Mainstream: Resolution of 4512 x 2512 at 2fps to 20fps (Default: 20fps) with bitrates configurable from 3072 Kbps to 10240 Kbps (Default: 8192 Kbps).
Substream: Configurable frame rates from 4fps to 20fps (Default: 10fps) with bitrates from 128 Kbps to 1024 Kbps (Default: 768 Kbps).
Can I record video footage to an NVR, NAS, or FTP server?
A: Yes. The RLC-1224A supports recording to Reolink Network Video Recorders (NVRs), NAS systems, and off-site FTP servers utilizing standard network protocols including ONVIF, RTSP, RTMP, and P2P.
How much footage can a 512GB microSD card hold?
A: At the default mainstream bitrate of 8192 Kbps, a high-capacity 512GB microSD card can store approximately 48 to 96 hours of continuous 12MP video, or several months of motion-triggered event clips.

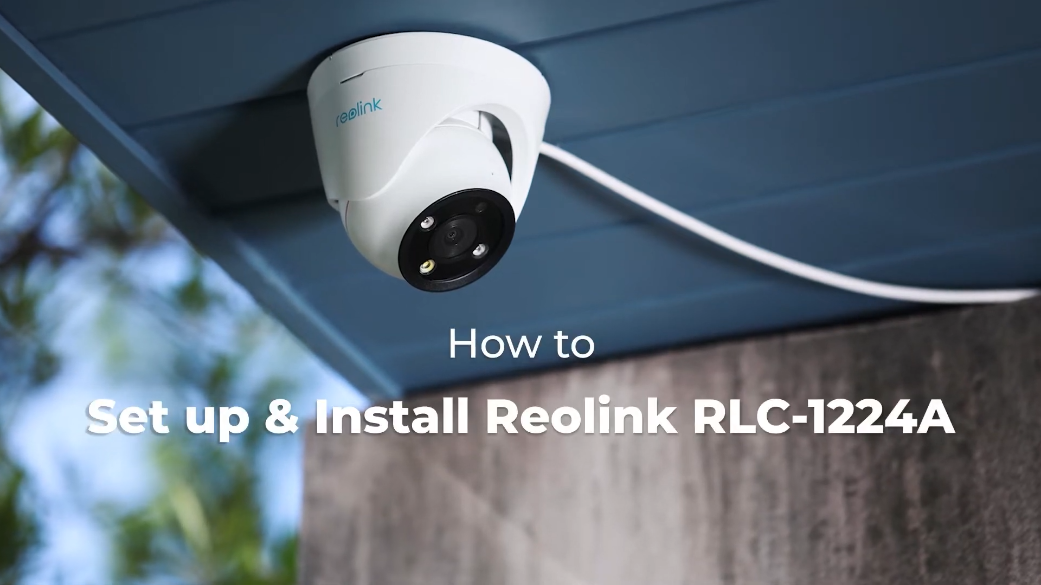

Setup, Installation & Turret Mounting
What items are included in the standard Reolink RLC-1224A package?
A: The standard package includes:
Reolink RLC-1224A Camera
1-meter Network Cable
Quick Start Guide
24/7 Surveillance Sticker
Mounting Template
Pack of Screws with Drywall Anchors
Waterproof Lid Kit
How do I perform initial setup using the Reolink App?
A:
Connect the camera to a PoE switch, PoE injector, or Reolink NVR or power via 12V DC adapter and connect to router.
Download and launch the Reolink App, then tap the plus (+) icon in the upper right corner.
Scan the QR code on the camera body or tap "Input UID/IP" to manually type the 16-character UID code.
Create an administrator password and assign a name to your camera.
Tap Finish to complete setup and launch live view.
How do I detach the mounting plate from the camera before installation?
A: Hold and press firmly on the top of the turret base, then twist the outer camera housing counterclockwise to separate the base mounting plate from the camera unit.
How do I attach the camera to a surface and lock it into place?
A:
Drill holes using the mounting template and secure the mounting plate to the ceiling or wall with the provided screws.
Align the camera unit with the mounting plate, ensuring the alignment marks on the camera body and mounting plate match up.
Twist the camera clockwise until it locks tightly onto the plate.
How do I adjust the viewing angle after mounting?
A: Once mounted, manually swivel and tilt the inner camera body inside its bracket (Supports up to 360 degrees horizontal rotation and 90 degrees vertical tilt) to achieve your target viewing coverage.
Compatibility, Software Features & Technical Support
What mobile and desktop platforms and browsers support the RLC-1224A?
A:
Desktop Software: Windows PC and Mac OS (via Reolink Client).
Mobile Platforms: iOS and Android (via Reolink App).
Web Browsers: Microsoft Edge, Google Chrome, Mozilla Firefox, and Apple Safari.
How many simultaneous user accounts and video streams are permitted?
A:
User Accounts: Supports up to 20 user accounts (1 administrator account and 19 standard user accounts).
Video Streams: Supports up to 12 simultaneous video streams (10 substreams and 2 mainstreams).
What network protocols and security standards are supported?
Is a monthly subscription required to use smart detection or software features?
A: No. All core camera features—including smart person/vehicle/pet detection, local microSD storage, live streaming, push notifications, two-way audio, and software access—are completely subscription-free.
What warranty and technical support service come with the Reolink RLC-1224A?
A: The camera comes with a 2-year limited hardware warranty and access to official technical support through the online Reolink Help Center.
