Reolink E1 Outdoor

5MP 3x Optical Zoom PTZ Wi-Fi Camera with Color Night Vision

5MP Super HD Resolution for Clarity
3× Optical Zoom Captures Sharp Distant Details
355° Pan and Tilt with Auto-Tracking
Smart Person, Vehicle, and Animal Detection
Full-Color Night Vision with Built-In Spotlights
Dual-Band WiFi for Stable Wireless Connection

Price range: RM499.00 through RM1,249.00

Addons

Storage

Clear

Reolink E1 Outdoor

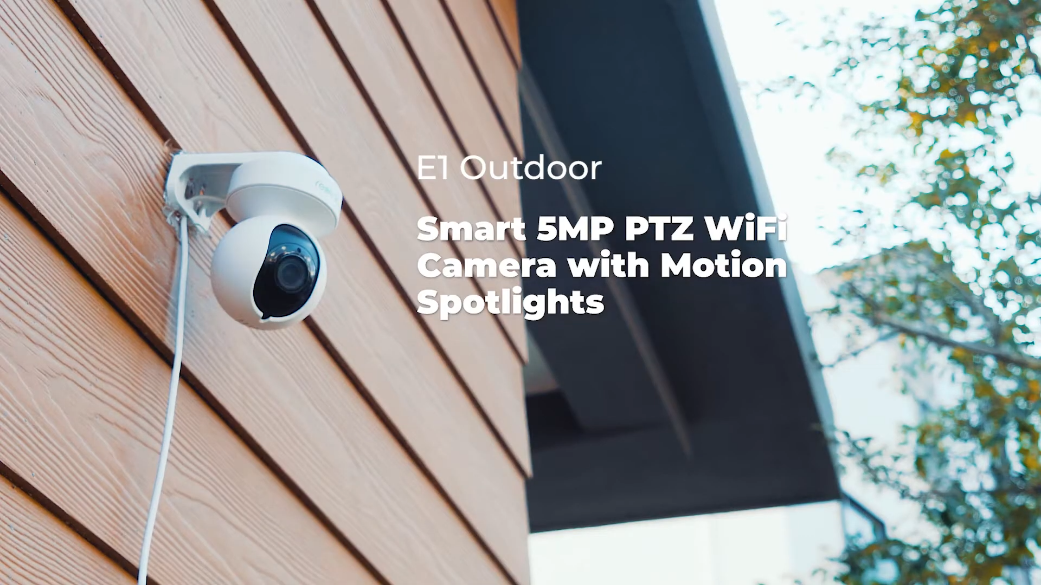

E1 Outdoor Video

6 Videos

Compare - E1 Outdoor vs E1 vs E1 Pro vs E1 Zoom

Others Video

Disclaimer: The videos are intended for reference purposes only and are not guaranteed to be 100% accurate. Please refer to the actual product or contact us for verification.

Check it Out

Overview & General Specifications

What is the Reolink E1 Outdoor camera?

A: The Reolink E1 Outdoor is a compact 5MP Super HD PTZ (Pan-Tilt-Zoom) outdoor WiFi security camera. It features 3x optical zoom, smart person, vehicle, and animal detection, auto-tracking, spotlight color night vision, two-way audio, and IP65 weatherproofing.

What are the main key features of the Reolink E1 Outdoor?

A: Key features include:

5MP Super HD Resolution (2560 x 1920 pixels)
3x Optical Zoom (f=2.8-8mm motorized lens, F1.6 aperture)
Pan & Tilt with Auto Tracking (355-degree horizontal pan, 50-degree vertical tilt)
Dual-Band WiFi (2.4 GHz / 5 GHz support)
Smart AI Detections (Person, Vehicle, Animal, and Motion Detection)
Color Night Vision with 4 built-in spotlights
IP65 Weatherproof Housing for outdoor durability

What items are included in the box when purchasing the Reolink E1 Outdoor?

A: The standard package includes:

Reolink E1 Outdoor Camera
Power Adapter (DC 12V 1A)
4.5m Power Extension Cable
1m Network Cable
Security Bracket & Ceiling Mounting Plate
Strap
Mounting Template
Pack of Screws and Drywall Anchors
Reset Needle
24/7 Surveillance Sticker
Quick Start Guide

What is the warranty coverage for the Reolink E1 Outdoor?

A: The Reolink E1 Outdoor comes with a 2-year limited warranty when purchased from official channels. Technical support and software updates are provided through the official Reolink support site.

What are the physical dimensions and weight of the Reolink E1 Outdoor?

A: The camera measures 90 mm in diameter by 120 mm in height or 85 mm by 118 mm body frame and weighs approximately 458 grams.

Video, Optics, Zoom & Night Vision

What is the video resolution and frame rate of the Reolink E1 Outdoor?

A: The camera records in 5MP Super HD (2560 x 1920 resolution) at up to 20 frames per second (fps) for the main stream using H.264 video compression.

What lens specifications and optical field of view does the camera feature?

A: The camera is built with a 1/2.7-inch CMOS image sensor and a motorized 3x optical zoom lens (f=2.8-8mm, F1.6 aperture). Its field of view ranges from 90 degrees to 50 degrees horizontally and 53 degrees to 30 degrees vertically depending on the zoom level.

How does the 3x optical zoom work on the Reolink E1 Outdoor?

A: The true 3x optical zoom motorized lens adjusts physical focal length, allowing users to zoom in on distant subjects to examine fine details without decreasing image quality or introducing digital pixelation.

What night vision modes are supported on the E1 Outdoor?

A:

What are the default frame rates and video bitrates for the camera?

A:

Pan, Tilt, Auto Tracking & Smart Detections

What are the Pan and Tilt angles of the Reolink E1 Outdoor?

A: The camera motorized head provides horizontal rotation of up to 355 degrees (Pan) and vertical tilt of up to 50 degrees (Tilt) for wide coverage.

Does the camera support Auto Tracking and preset positions?

A: Yes, the Reolink E1 Outdoor features Auto Tracking to automatically follow moving subjects across its field of view. It also supports 1 Guard Position and up to 64 Preset Positions with power-off memory retention.

What smart detection alerts can the camera trigger?

A: Onboard AI algorithms enable real-time detection for:

Does the camera feature active deterrents like a siren or spotlights?

A: Yes, when unauthorized motion or targets are detected, the camera can automatically illuminate its 4 built-in spotlights and sound a customizable audio siren or voice alarm to deter intruders.

Does the Reolink E1 Outdoor support Time Lapse recording?

A: Yes, the E1 Outdoor includes a Time Lapse feature accessible via the Reolink App, allowing users to compress long events (such as garden growth or construction) into short video clips.

WiFi, Networking & Smart Home Compatibility

Which WiFi frequency bands and standards does the E1 Outdoor support?

A: The camera supports dual-band WiFi operating on both 2.4 GHz and 5 GHz wireless frequencies under IEEE 802.11 a/ac/b/g/n standards with WPA and WPA2 security encryption.

Does the E1 Outdoor include an Ethernet network port?

A: Yes, the tail cable of the camera includes one 10M/100Mbps RJ45 Ethernet port for initial network configuration or stable hardwired network connections.

Which smart home voice assistants are compatible with the camera?

A: The Reolink E1 Outdoor is compatible with Google Assistant, allowing live video streaming on smart display devices using voice commands.

How many simultaneous user accesses and live streams are supported?

A:

Which operating systems and web browsers can control the camera?

A:

Computers: Windows PC and Mac OS via the Reolink Client.
Mobile Devices: iOS and Android via the Reolink App.
Web Browsers: Google Chrome, Microsoft Edge, Mozilla Firefox, and Apple Safari.
Supported Protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, and P2P.

Power, Hardware, Storage & Weather Resistance

How is the Reolink E1 Outdoor powered? Is it battery-operated or PoE?

A: The Reolink E1 Outdoor is a plug-in DC camera powered by an included DC 12.0V, 1A power adapter and a 4.5m extension cable. It is not battery-operated and does not support Power over Ethernet (PoE).

What local storage options are supported on the device?

A: The camera features a built-in MicroSD card slot beneath a rubber protective cover on the lens sphere that supports microSD cards up to 512GB.

What video recording modes are supported on the device?

A:

What is the weather resistance rating of the Reolink E1 Outdoor?

A: The camera features an IP65 weatherproof rating, protecting it against dust ingress, heavy rain, snow, and low-pressure water jets from any direction.

What are the operational temperature and humidity limits?

A:

Setup, Installation & Troubleshooting

How do you set up the Reolink E1 Outdoor via WiFi?

A:

Connect the camera to power using the included DC 12V adapter.
Open the Reolink App and tap the "+" icon in the top right corner.
Scan the QR code on the camera body or enter the 16-character UID.
Tap "Choose WiFi Connection", select your 2.4GHz or 5GHz WiFi network, and enter the password.
Hold your smartphone screen displaying the generated QR code about 20 cm (8 inches) in front of the lens until it beeps.
Create an admin password, name the device, and complete setup.

How do you set up the camera using an Ethernet cable connection?

A:

Connect the camera tail cable to power and connect its RJ45 Ethernet port to your router using a network cable.
Open the Reolink App, tap "+", scan the camera QR code or let auto-discovery find it on LAN, and select "Choose Network Cable Connection".
Access the camera, assign an admin password, and save your WiFi credentials if you wish to switch to wireless mode later.

How do you mount the Reolink E1 Outdoor on a wall or ceiling?

A:

Wall Mounting: Detach the bracket from the security mount, screw the camera onto the bracket, mount the security bracket to the wall using screws/anchors, and lock the camera bracket into the security mount until it clicks into place.
Ceiling Mounting: Unscrew the ceiling plate from the security bracket, fix the ceiling bracket overhead using screws, align the camera base, and turn clockwise until locked.
Important Note: For outdoor mounting, install the camera inverted (Upside down) to ensure optimal weather resistance and prevent water accumulation.

What do the Status LED light colors on the camera indicate?

A:

How do you perform a factory reset and adjust inverted video if mounted upside down?

A:

Factory Reset: Open the rubber cover on the lens housing to reveal the reset button. Insert the reset needle and press the Reset Button for several seconds until you hear the audio prompt.
Flip Image Vertical: If the camera is mounted upside down, open the Reolink App or Client, go to Device Settings > Display, and enable Flip Vertical to adjust the live video orientation.
